20Bar 12mm Double Layer Pneumatic Air Tubing , TPU Fiber Braided Air Hose

Brand Name : DOPOW

Model Number : CL

Certification : CE

Place of Origin : Yueqing China

MOQ : 1 Roll

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 100000roll/MO

Delivery Time : 5 working days after receiving the customers' payment

Packaging Details : Wooden box, Standard carton packaging

Size : 6,8,10,12mm

Length : 3 meters, 6 meters, 9m and so on

Color : Blue, Black

Material : PU, Polythylene

Fluid temperature : -5C~50C

Fluid : Air, lubricating

Thickness : 1mm

Standard : ISO

MOQ : 2000 Meters

Contact Now

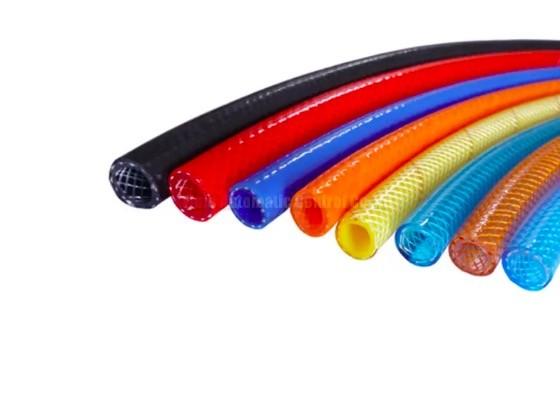

20Bar 12mm Double Layer Pneumatic Air Tubing, TPU Fiber Braided Air Hose

PUB Series TPU and Fiber braided air hose outer dia.8mm,10mm,12mm,13.5mm,18mm working pressure 20bar e.g PUB8x5-100M-BU

Quick Detail:

* PUB Series TPU and Fiber Braided air tube

* Thermoplastic Polyurethane material inside and outside double layer

* high-Fiber material line reinforced in the middle

* high working pressure up to 20bar,bursting pressure up to 60~80bar

* outer Dia. Metric size 8mm, 10mm,12mm, 13.5mm,18mm

* conform to ROHS environment protection requirement

* high flexibility for piping working

* small bending radius,applicable for occasions of big bending

* superior anti-vibration,anti-corrosion,anti-weather,anti-Chemical and anti-oil

* outstanding anti-weater,anti-curve and anti-fatigue

* Anti-UV class reach up to 3.5,maintain colour even in outdoor application

* wide applicable range of tempeature

* various tube colours for option make it easier to distinguish pipes one another

* low absorb rate,low physical performance deterioration and low changeable rate of measurement

* non-toxic,tastless

Applications:

PUB TPU Braided air hose used widely in industrial area like automotive,textile,air compressor,painting,welding,hardware tools, agriculture, Food,medicine,civil engineering,farming industrial, landscape irrigation, electronic industrial etc

PUB Series air hose used in the auto reel as fluids transporation.

Specifications:

ORDERING CODE
PUB 8x5 100M BU
Type O.Dx I.D Metric Size Meters Per Roll Colours
PUB:TPU BRAIDED TUBE 8x5 100M/Roll BU:BLUE
10x6.5 B:BLACK
13.5x9.5 R:RED
12x8 T:TRANSPARENT
18x12.7 O:ORANGE

SPECIFICATION

1,Material: Thermoplastic Polyurethane and High-Fiber

2,Working Fluids:Air,water,oil

3,Working Pressure:-0.2bar~20bar

4,Working Temperature:-40~80℃

MODEL NO O.D I.D TOLERANCE(mm) THICKNESS(S) BURSTING PRESSURE(BAR)
PUB8×5/100M 8 5 0.1 1.5 60~80
PUB10×6.5/100M 10 6.5 0.12 1.75 60~80
PUB12×8/100M 12 8 0.15 2 60~80
PUB13.5×9.5/100M 12 9 0.15 2 60~80
PUB18x12.7/100M 16 12 0.15 2.65 60~80
